CORDEX domains

The domain module should give some tools to work with preconfigured or user defined domains. Domains are defined as xarray datasets that will contain dimensions and coodinates according to CF-conventions.

NOTE: The domain module mostly focuses on working with rotated cordex domains and how they are defined in the cordex archive specifications. However, there are some regional models that use different mappings instead of rotated_pole or rotated_latitude_longitude which we focus on. Any expertise working with those different mappings is highly welcome!

import cordex as cx

The domain module contains some useful functions to work with cordex meta data, e.g., you can get some domain grid information using

cx.domain_info("EUR-11")

Downloading file 'rotated-latitude-longitude.csv' from 'https://raw.githubusercontent.com/WCRP-CORDEX/domain-tables/main/rotated-latitude-longitude.csv' to '/home/docs/.py-cordex'.

{'short_name': 'EUR-11',
 'region': 4,
 'domain_id': 'EUR-12',
 'domain': 'Europe',
 'CORDEX_domain': 'EUR-11',
 'long_name': 'Europe',
 'nlon': 424,
 'nlat': 412,
 'll_lon': -28.375,
 'ur_lon': 18.155,
 'll_lat': -23.375,
 'ur_lat': 21.835,
 'dlon': 0.11,
 'dlat': 0.11,
 'pollon': -162.0,
 'pollat': 39.25}

All available cordex domains can be found in the CORDEX domain table on github or directly from withing py-cordex, e.g.

cx.domains.table

	region	domain_id	domain	CORDEX_domain	long_name	nlon	nlat	ll_lon	ur_lon	ll_lat	ur_lat	dlon	dlat	pollon	pollat
short_name
SAM-44	1	SAM-50	South America	SAM-44	South America	146	167	143.92000	207.72000	-38.28000	34.76000	0.4400	0.4400	-56.06	70.60
CAM-44	2	CAM-50	Central America	CAM-44	Central America	210	113	-52.80000	39.16000	-28.60000	20.68000	0.4400	0.4400	113.98	75.74
NAM-44	3	NAM-50	North America	NAM-44	North America	155	130	-33.88000	33.88000	-28.40000	28.36000	0.4400	0.4400	83.00	42.50
EUR-44	4	EUR-50	Europe	EUR-44	Europe	106	103	-28.21000	17.99000	-23.21000	21.67000	0.4400	0.4400	-162.00	39.25
AFR-44	5	AFR-50	Africa	AFR-44	Africa	194	201	-24.64000	60.28000	-45.76000	42.24000	0.4400	0.4400	180.00	90.00
WAS-44	6	WAS-50	South Asia	WAS-44	South Asia	193	130	-32.12000	52.36000	-21.56000	35.20000	0.4400	0.4400	-123.34	79.95
EAS-44	7	EAS-50	East Asia	EAS-44	East Asia	203	167	-40.92000	47.96000	-26.84000	46.20000	0.4400	0.4400	-64.78	77.61
CAS-44	8	CAS-50	Central Asia	CAS-44	Central Asia	153	100	-34.32000	32.56000	-20.68000	22.88000	0.4400	0.4400	-103.39	43.48
AUS-44	9	AUS-50	Australasia	AUS-44	Australasia	200	129	142.16000	229.72000	-22.88000	33.44000	0.4400	0.4400	141.38	60.31
ANT-44	10	ANT-50	Antarctica	ANT-44	Antarctica	125	97	152.72000	207.28000	-27.72000	14.52000	0.4400	0.4400	-166.92	6.08
ARC-44	11	ARC-50	Arctic	ARC-44	Arctic	116	133	-22.88000	27.72000	-24.20000	33.88000	0.4400	0.4400	0.00	6.55
MED-44	12	MED-50	Mediterranean	MED-44	Mediterranean	98	63	-23.22000	19.46000	-21.34000	5.94000	0.4400	0.4400	198.00	39.25
MNA-44	13	MNA-50	Middle East and North Africa	MNA-44	Middle East and North Africa	232	118	-26.40000	75.24000	-6.60000	44.88000	0.4400	0.4400	180.00	90.00
MNA-22	13	MNA-25	Middle East and North Africa	MNA-22	Middle East and North Africa	464	236	-26.51000	75.35000	-6.71000	44.99000	0.2200	0.2200	180.00	90.00
SAM-11	1	SAM-12	South America	SAM-11	South America	584	668	143.75500	207.88500	-38.44500	34.92500	0.1100	0.1100	-56.06	70.60
CAM-11	2	CAM-12	Central America	CAM-11	Central America	840	452	-52.96500	39.32500	-28.76500	20.84500	0.1100	0.1100	113.98	75.74
NAM-11	3	NAM-12	North America	NAM-11	North America	620	520	-34.04500	34.04500	-28.56500	28.52500	0.1100	0.1100	83.00	42.50
EUR-11	4	EUR-12	Europe	EUR-11	Europe	424	412	-28.37500	18.15500	-23.37500	21.83500	0.1100	0.1100	-162.00	39.25
AFR-11	5	AFR-12	Africa	AFR-11	Africa	776	804	-24.80500	60.44500	-45.92500	42.40500	0.1100	0.1100	180.00	90.00
WAS-11	6	WAS-12	South Asia	WAS-11	South Asia	772	520	-32.28500	52.52500	-21.72500	35.36500	0.1100	0.1100	-123.34	79.95
EAS-11	7	EAS-12	East Asia	EAS-11	East Asia	812	668	-41.08500	48.12500	-27.00500	46.36500	0.1100	0.1100	-64.78	77.61
CAS-11	8	CAS-12	Central Asia	CAS-11	Central Asia	612	400	-34.48500	32.72500	-20.84500	23.04500	0.1100	0.1100	-103.39	43.48
AUS-11	9	AUS-12	Australasia	AUS-11	Australasia	800	516	141.99500	229.88500	-23.04500	33.60500	0.1100	0.1100	141.38	60.31
ANT-11	10	ANT-12	Antarctica	ANT-11	Antarctica	500	388	152.55500	207.44500	-27.88500	14.68500	0.1100	0.1100	-166.92	6.08
ARC-11	11	ARC-12	Arctic	ARC-11	Arctic	464	532	-23.04500	27.88500	-24.36500	34.04500	0.1100	0.1100	0.00	6.55
MED-11	12	MED-12	Mediterranean	MED-11	Mediterranean	392	252	-23.38500	19.62500	-21.50500	6.10500	0.1100	0.1100	198.00	39.25
MNA-11	13	MNA-12	Middle East and North Africa	MNA-11	Middle East and North Africa	928	472	-26.56500	75.40500	-6.76500	45.04500	0.1100	0.1100	180.00	90.00
GAR-0275	4	GAR-3	Greater Alpine Region	GAR-0275	Greater Alpine Region	476	444	-13.51125	-0.44875	-10.93125	1.25125	0.0275	0.0275	-162.00	39.25
CEU-0275	4	CEU-3	Central Europe	CEU-0275	Central Europe	345	385	-9.30375	NaN	-5.07375	NaN	0.0275	0.0275	-162.00	39.25
SAM-22	1	SAM-25	South America	SAM-22	South America	292	334	143.81000	207.83000	-38.39000	34.87000	0.2200	0.2200	-56.06	70.60
CAM-22	2	CAM-25	Central America	CAM-22	Central America	420	226	-52.91000	39.27000	-28.71000	20.79000	0.2200	0.2200	113.98	75.74
NAM-22	3	NAM-25	North America	NAM-22	North America	310	260	-33.99000	33.99000	-28.51000	28.47000	0.2200	0.2200	83.00	42.50
EUR-22	4	EUR-25	Europe	EUR-22	Europe	212	206	-28.32000	18.10000	-23.32000	21.78000	0.2200	0.2200	-162.00	39.25
AFR-22	5	AFR-25	Africa	AFR-22	Africa	388	402	-24.75000	60.39000	-45.87000	42.35000	0.2200	0.2200	180.00	90.00
WAS-22	6	WAS-25	South Asia	WAS-22	South Asia	386	260	-32.23000	52.47000	-21.67000	35.31000	0.2200	0.2200	-123.34	79.95
EAS-22	7	EAS-25	East Asia	EAS-22	East Asia	396	251	-43.23000	43.67000	-22.10000	32.90000	0.2200	0.2200	-64.78	77.61
CAS-22	8	CAS-25	Central Asia	CAS-22	Central Asia	306	200	-34.43000	32.67000	-20.79000	22.99000	0.2200	0.2200	-103.39	43.48
AUS-22	9	AUS-25	Australasia	AUS-22	Australasia	400	258	142.05000	229.83000	-22.99000	33.55000	0.2200	0.2200	141.38	60.31
SEA-22	14	SEA-25	South East Asia	SEA-22	South East Asia	264	194	89.26000	147.12000	-15.18000	27.28000	0.2200	0.2200	180.00	90.00
SAM-44i	1	SAM-50i	South America	SAM-44i	South America	181	155	-106.25000	-16.25000	-58.25000	18.75000	0.5000	0.5000	NaN	NaN
CAM-44i	2	CAM-50i	Central America	CAM-44i	Central America	207	111	-124.75000	-21.75000	-19.75000	35.25000	0.5000	0.5000	NaN	NaN
NAM-44i	3	NAM-50i	North America	NAM-44i	North America	300	129	-171.75000	-22.25000	12.25000	76.25000	0.5000	0.5000	NaN	NaN
EUR-44i	4	EUR-50i	Europe	EUR-44i	Europe	221	103	-44.75000	65.25000	21.75000	72.75000	0.5000	0.5000	NaN	NaN
AFR-44i	5	AFR-50i	Africa	AFR-44i	Africa	173	179	-25.25000	60.75000	-46.25000	42.75000	0.5000	0.5000	NaN	NaN
WAS-44i	6	WAS-50i	South Asia	WAS-44i	South Asia	195	124	19.25000	116.25000	-15.75000	45.75000	0.5000	0.5000	NaN	NaN
EAS-44i	7	EAS-50i	East Asia	EAS-44i	East Asia	227	157	62.75000	175.75000	-18.75000	59.25000	0.5000	0.5000	NaN	NaN
CAS-44i	8	CAS-50i	Central Asia	CAS-44i	Central Asia	260	133	10.75000	140.25000	17.75000	69.75000	0.5000	0.5000	NaN	NaN
AUS-44i	9	AUS-50i	Australasia	AUS-44i	Australasia	238	133	88.75000	207.25000	-53.25000	12.75000	0.5000	0.5000	NaN	NaN
ANT-44i	10	ANT-50i	Antarctica	ANT-44i	Antarctica	720	70	-179.75000	179.75000	-89.75000	-55.25000	0.5000	0.5000	NaN	NaN
ARC-44i	11	ARC-50i	Arctic	ARC-44i	Arctic	720	83	-179.75000	179.75000	48.75000	89.75000	0.5000	0.5000	NaN	NaN
MED-44i	12	MED-50i	Mediterranean	MED-44i	Mediterranean	144	65	-20.75000	51.75000	25.25000	57.25000	0.5000	0.5000	NaN	NaN
MNA-44i	13	MNA-50i	Middle East and North Africa	MNA-44i	Middle East and North Africa	206	106	-26.75000	75.75000	-7.25000	45.25000	0.5000	0.5000	NaN	NaN
MNA-22i	13	MNA-25i	Middle East and North Africa high res.	MNA-22i	Middle East and North Africa high res.	410	209	-26.62500	75.62500	-6.87500	45.12500	0.2500	0.2500	NaN	NaN
EUR-11i	4	EUR-12i	Europe high res.	EUR-11i	Europe high res.	881	408	-44.81250	65.18750	21.81250	72.68750	0.1250	0.1250	NaN	NaN
SEA-22i	14	SEA-25i	South East Asia	SEA-22i	South East Asia	233	172	89.12500	147.12500	-15.37500	27.37500	0.2500	0.2500	NaN	NaN

EUR-11 example

The heart of the module are some functions that create a dataset from the grid information, e.g.

eur11 = cx.cordex_domain("EUR-11", dummy="topo")
eur11

/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cf_xarray/accessor.py:671: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
  unused_keys = set(attribute.keys()) - set(inverted)
/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cf_xarray/accessor.py:672: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
  for key, value in attribute.items():

<xarray.Dataset> Size: 4MB
Dimensions:                     (rlon: 424, rlat: 412)
Coordinates:
  * rlon                        (rlon) float64 3kB -28.38 -28.27 ... 18.05 18.16
  * rlat                        (rlat) float64 3kB -23.38 -23.27 ... 21.73 21.84
    lon                         (rlat, rlon) float64 1MB -10.06 -9.964 ... 64.96
    lat                         (rlat, rlon) float64 1MB 21.99 22.03 ... 66.69
Data variables:
    rotated_latitude_longitude  int32 4B 0
    topo                        (rlat, rlon) float32 699kB 284.0 246.0 ... 509.0
Attributes:
    CORDEX_domain:  EUR-11

xarray.Dataset

• Dimensions:
  • rlon: 424
  • rlat: 412
• Coordinates: (4)
  • rlon
    (rlon)
    float64
    -28.38 -28.27 ... 18.05 18.16

    axis :

    X

    standard_name :

    grid_longitude

    long_name :

    longitude in rotated pole grid

    units :

    degrees

    array([-28.375, -28.265, -28.155, ...,  17.935,  18.045,  18.155])

  • rlat
    (rlat)
    float64
    -23.38 -23.27 ... 21.73 21.84

    axis :

    Y

    standard_name :

    grid_latitude

    long_name :

    latitude in rotated pole grid

    units :

    degrees

    array([-23.375, -23.265, -23.155, ...,  21.615,  21.725,  21.835])

  • lon
    (rlat, rlon)
    float64
    -10.06 -9.964 ... 64.76 64.96

    standard_name :

    longitude

    long_name :

    longitude

    units :

    degrees_east

    array([[-10.06387966,  -9.96388628,  -9.86380363, ...,  36.19872654,
             36.30631294,  36.41382968],
           [-10.11099589, -10.01086154,  -9.91063756, ...,  36.23077703,
             36.33853934,  36.44623165],
           [-10.15817955, -10.05790422,  -9.95753886, ...,  36.26288362,
             36.37082205,  36.47869015],
           ...,
           [-44.26744553, -44.1287729 , -43.98957131, ...,  64.21746364,
             64.42305922,  64.62774455],
           [-44.43028713, -44.29178077, -44.15274426, ...,  64.38488381,
             64.59063409,  64.79546746],
           [-44.59386389, -44.45552794, -44.31666067, ...,  64.55349992,
             64.75940009,  64.96437667]])

  • lat
    (rlat, rlon)
    float64
    21.99 22.03 22.07 ... 66.75 66.69

    standard_name :

    latitude

    long_name :

    latitude

    units :

    degrees_north

    array([[21.98782876, 22.02783807, 22.06771602, ..., 25.1677739 ,
            25.14109405, 25.11426239],
           [22.08878725, 22.1288583 , 22.16879786, ..., 25.27388366,
            25.24715843, 25.22028117],
           [22.18973223, 22.22986507, 22.2698663 , ..., 25.37998647,
            25.3532158 , 25.32629289],
           ...,
           [60.05553554, 60.13088567, 60.20613923, ..., 66.63852915,
            66.57692365, 66.51510791],
           [60.12974984, 60.20521265, 60.28057952, ..., 66.72632651,
            66.66454929, 66.60256233],
           [60.20376337, 60.27933874, 60.35481882, ..., 66.81394504,
            66.75199541, 66.68983654]])

• Data variables: (2)
  • rotated_latitude_longitude
    ()
    int32
    0

    grid_mapping_name :

    rotated_latitude_longitude

    grid_north_pole_latitude :

    39.25

    grid_north_pole_longitude :

    -162.0

    north_pole_grid_longitude :

    0.0

    array(0, dtype=int32)

  • topo
    (rlat, rlon)
    float32
    284.0 246.0 246.0 ... 509.0 509.0

    coordinates :

    lat lon

    grid_mapping :

    rotated_latitude_longitude

    units :

    m

    array([[ 2.8400000e+02,  2.4600000e+02,  2.4600000e+02, ...,
            -1.6953334e+03, -1.6953334e+03, -1.6953334e+03],
           [ 2.8066666e+02,  2.8066666e+02,  2.4600000e+02, ...,
            -1.6953334e+03, -1.6953334e+03, -1.6953334e+03],
           [ 2.8066666e+02,  2.8066666e+02,  2.4600000e+02, ...,
            -1.6953334e+03, -1.6953334e+03, -1.6953334e+03],
           ...,
           [-6.6666669e-01, -6.6666669e-01,  4.6666665e+00, ...,
             5.3600000e+02,  5.3600000e+02,  5.0900000e+02],
           [-6.6666669e-01, -6.6666669e-01, -6.6666669e-01, ...,
             5.3600000e+02,  5.0900000e+02,  5.0900000e+02],
           [ 2.7966666e+02, -6.6666669e-01, -6.6666669e-01, ...,
             5.0900000e+02,  5.0900000e+02,  5.0900000e+02]], dtype=float32)

• Indexes: (2)
  • rlon
    PandasIndex

    PandasIndex(Index([-28.375, -28.265, -28.155, -28.045, -27.935, -27.825, -27.715, -27.605,
           -27.495, -27.385,
           ...
            17.165,  17.275,  17.385,  17.495,  17.605,  17.715,  17.825,  17.935,
            18.045,  18.155],
          dtype='float64', name='rlon', length=424))

  • rlat
    PandasIndex

    PandasIndex(Index([-23.375, -23.265, -23.155, -23.045, -22.935, -22.825, -22.715, -22.605,
           -22.495, -22.385,
           ...
            20.845,  20.955,  21.065,  21.175,  21.285,  21.395,  21.505,  21.615,
            21.725,  21.835],
          dtype='float64', name='rlat', length=412))

• Attributes: (1)

  CORDEX_domain :

  EUR-11

The dummy='topo' argument means, we want a dummy variable in the dataset to see how the domain looks like. For the dummy topography, we use the cdo topo operator in the background. So maybe you have to install python-cdo, e.g., conda install -c conda-forge python-cdo. Working with xarray datasets means, that we can use all the nice functions of xarray including plotting, e.g.,

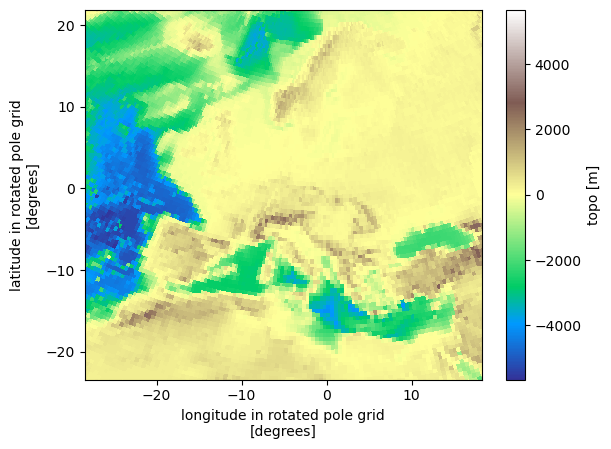

eur11.topo.plot(cmap="terrain")

Matplotlib is building the font cache; this may take a moment.

<matplotlib.collections.QuadMesh at 0x7f6195b7a5c0>

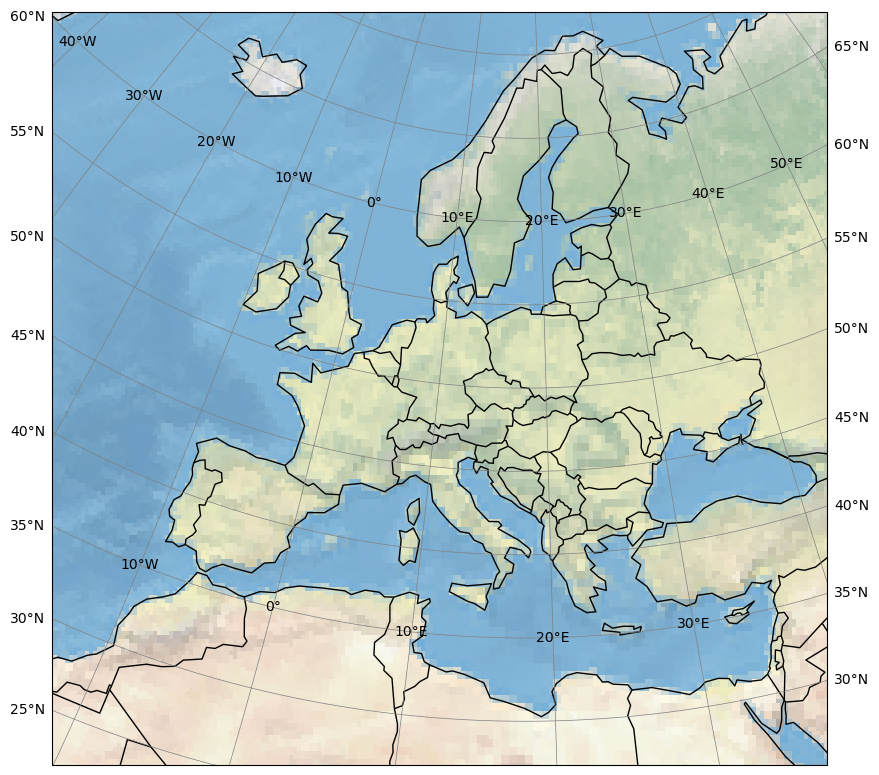

py-cordex also provides some xarray accessor functions. E.g., to get an overview of a domain, you can use the ds.cx.map function:

import matplotlib.pyplot as plt

plt.figure(figsize=(10, 10))
eur11.cx.map()

/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cartopy/mpl/feature_artist.py:144: UserWarning: facecolor will have no effect as it has been defined as "never".
  warnings.warn('facecolor will have no effect as it has been '

<GeoAxes: >

/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/110m_physical/ne_110m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/110m_cultural/ne_110m_admin_0_boundary_lines_land.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

Let’s define a slightly more sophisticated plotting function that uses cartopy for the right projection with a rotated pole:

import cartopy.crs as ccrs
import cartopy.feature as cf
import matplotlib.pyplot as plt


def plot(
    da,
    transform=ccrs.PlateCarree(),
    projection=ccrs.PlateCarree(),
    vmin=None,
    vmax=None,
    borders=True,
    xlocs=range(-180, 180, 10),
    ylocs=range(-90, 90, 5),
    extent=None,
    figsize=(15, 10),
    title="",
):
    """plot a domain using the right projections and transformations with cartopy"""
    plt.figure(figsize=figsize)
    ax = plt.axes(projection=projection)
    if extent:
        ax.set_extent(extent, crs=projection)
    ax.gridlines(
        draw_labels=True, linewidth=0.5, color="gray", xlocs=xlocs, ylocs=ylocs
    )
    da.plot(ax=ax, cmap="terrain", transform=transform, vmin=vmin, vmax=vmax)
    ax.coastlines(resolution="50m", color="black", linewidth=1)
    if borders:
        ax.add_feature(cf.BORDERS)
    return ax

We can now use the grid mapping information to plot the data in it’s native coordinate system using cartopy:

pole = (
    eur11.rotated_latitude_longitude.grid_north_pole_longitude,
    eur11.rotated_latitude_longitude.grid_north_pole_latitude,
)
pole

(-162.0, 39.25)

plot(eur11.topo, transform=ccrs.RotatedPole(*pole), projection=ccrs.RotatedPole(*pole))

<GeoAxes: xlabel='longitude in rotated pole grid\n[degrees]', ylabel='latitude in rotated pole grid\n[degrees]'>

/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

User defined domain

The domains are actually created from a csv table that define standard cordex domains. E.g., the data used to created the EUR-11 domain is

cx.domains.table.loc["EUR-11"]

region                4
domain_id        EUR-12
domain           Europe
CORDEX_domain    EUR-11
long_name        Europe
nlon                424
nlat                412
ll_lon          -28.375
ur_lon           18.155
ll_lat          -23.375
ur_lat           21.835
dlon               0.11
dlat               0.11
pollon           -162.0
pollat            39.25
Name: EUR-11, dtype: object

The domains are created using the create_dataset function, e.g.:

eur11_user = cx.create_dataset(
    nlon=424,
    nlat=412,
    dlon=0.11,
    dlat=0.11,
    ll_lon=-28.375,
    ll_lat=-23.375,
    pollon=-162.00,
    pollat=39.25,
    dummy="topo",
)

/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cf_xarray/accessor.py:671: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
  unused_keys = set(attribute.keys()) - set(inverted)
/home/docs/checkouts/readthedocs.org/user_builds/py-cordex/conda/latest/lib/python3.10/site-packages/cf_xarray/accessor.py:672: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
  for key, value in attribute.items():

We can check that this gives the same result as our preconfigured domain.

eur11_user.equals(eur11)

True
